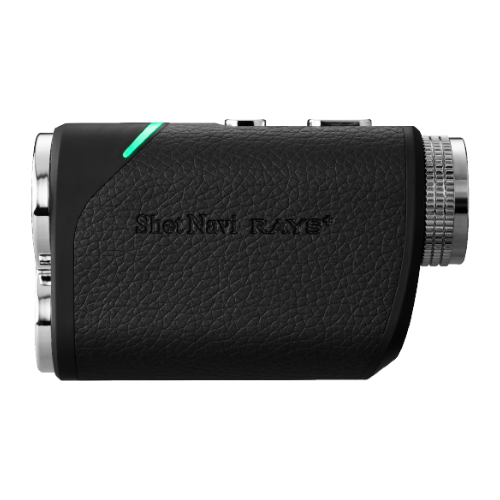

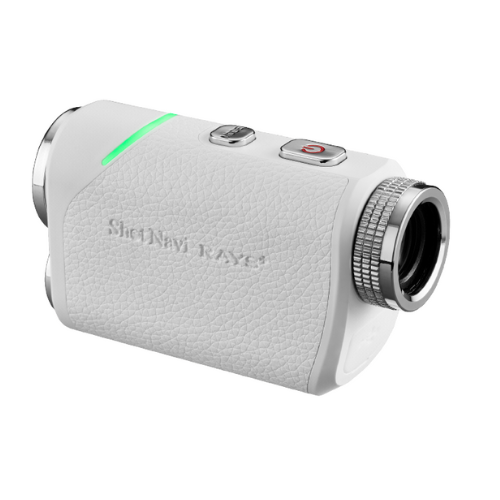

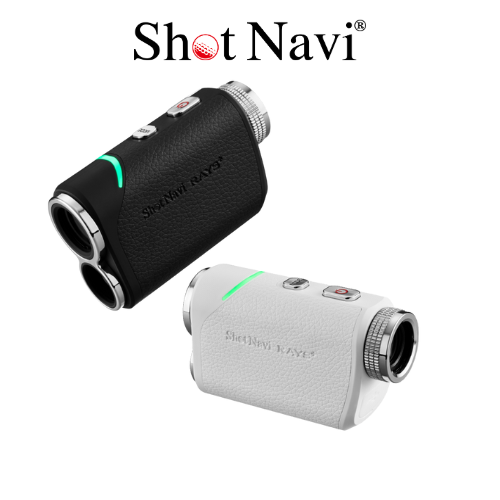

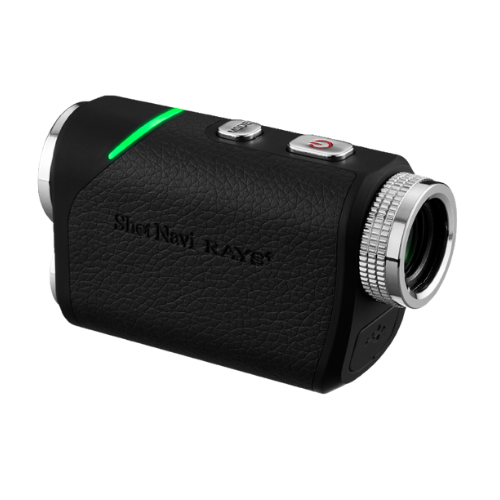

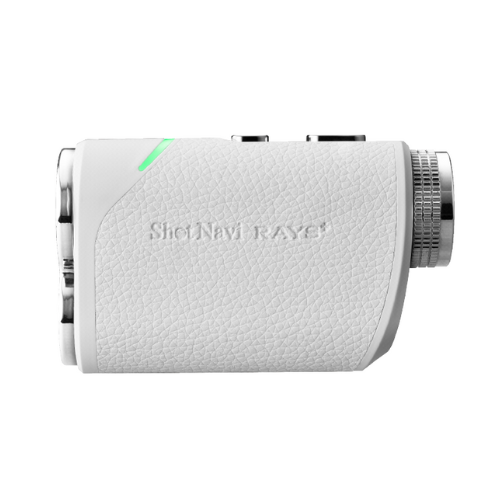

Shot Navi RAYS+ RangeFinder For Golf
Shot Navi RAYS+ RangeFinder For Golf
Couldn't load pickup availability
Shot Navi RAYS+ RangeFinder For Golf
This product features a compact and lightweight design for portability during play.
Its highly accurate measurement capabilities, even for long-distance targets, are complemented by a three-point distance measurement mode,
providing powerful support for strategic play.
We placed great value not only on accuracy and functionality, but also on appearance, exploring a variety of materials.
Made with high-quality materials, the luxurious leather-like finish combines style and modernity, provides
less slippage during measurement, and dramatically improves the fit when gripped.
We hope it helps you improve your score.
Incredible measurement error of ±50cm
Decimal point display allows for more precise measurements.
3D measurement mode (measures distance between three points) that allows measurements even when far away from the ball
You can measure the distance to the pin flag from a remote location such as a cart without having to go to the ball's location.
Situation:
...Measure the remaining distance for your companion
...Select a club that is appropriate for the distance from other locations
...Checking the players' distance and remaining distance when watching a game
...Measurement in situations where direct line of sight is blocked by obstacles
Select the optimal measurement method depending on the situation
Point measurement"Pin search measurement""Scan Measurement"
You can choose from three measurement methods depending on the situation.
-
Point measurement
Measure the distance to the target centered in the viewfinder -
Pin search measurement
(pin search assistance function)If you search for a target that is closer than the first measured object , the measured distance will be displayed along with a vibration
when the measurement is complete. -
Scan Measurement
This is a useful function when you want to know the distance to various targets such as bunkers, creeks, and trees
at once.
The longest measurement distance in the industry!
Measurements of over 1,600 yards are possible.
The ability to measure long distances improves aiming accuracy at the pin flag compared to models with a shorter measurement range.
Ultra-fast 0.05 second measurement
The measured distance is displayed the moment you press the button.
Displays the approximate distance calculated using Shot Navi's unique algorithm
-
Approximate distance displayFor shots with elevation changes, the measuredIn addition to the straight-line distance, when launching up or down,The actual target distance to hit is calculated based on elevation information.Automatically calculates and displays
-
Competition ModeThe LED on the main unit indicates whether the elevation difference function is on or off.It extends from the top to both sidesMulti-faceted check possible
*Whether or not the equipment can actually be used in play
will depend on the local rules of the tournament.
FUNCTIONS
Other features that support the product
-
Waterproof functionIts waterproof performance means you can use it safely even during a round, so you don't have to worry about drops or raindrops.
-
Wide-view LCD viewfinderThe large, wide-view, 6x magnification LCD viewfinder with wide viewing angle and transmittance makes it easy to focus on the target position, eliminating the need for time-consuming measurements.
-
Equipped with a rechargeable lithium polymer batteryApproximately 39,000 measurements can be made on a single full charge via the USB Type-C terminal. No battery replacement is required, making it an eco-friendly product.
| item | specification |
|---|---|
| External dimensions | 92×56×31.5mm |
| weight | 115g |
| battery | Lithium polymer battery (rechargeable) |
| Charging port specifications | USB Type-C |
| Charging time | Approximately 3.5 hours |
| Number of uses when fully charged | Approximately 39,000 times when measuring points *1 |
| Measurement range | 3.3~1,640.0yd (3.0~1500.0m) |
| Measurement error | ±50cm |
| magnification | 6 times |
| Laser wavelength | 905nm |
| Laser Standards | IEC 60825-1 Class 1M Laser Product |
| Lens diameter/effective diameter | 21mm / 19.8mm |
| Exit pupil | 3.3mm |
| Eye relief | 14.7mm |
| operating temperature | 0℃~50℃ |
| storage temperature | -20 to 60°C |
| waterproof | IPX4 equivalent (daily waterproof level) |
| accessories |
Leather case / Lens cloth / USB Type-C cable / Instruction manual and warranty card |
*1: The number of times it can be used will decrease depending on the number of years of use (deterioration over time) and frequency of use.
