Insta360 Mic & Mic Pro
Compatibility
Luna Ultra / Pro
X 5/6
Ace Pro 2
GO Ultra
Get the highlights.
-

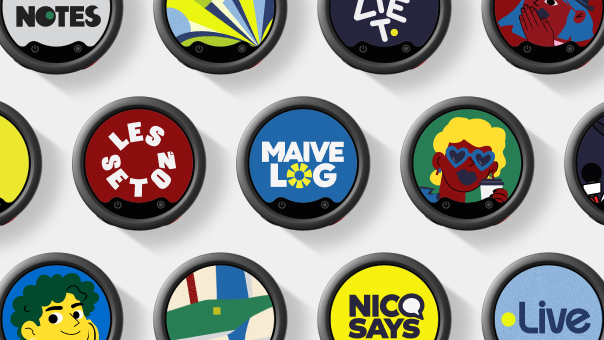

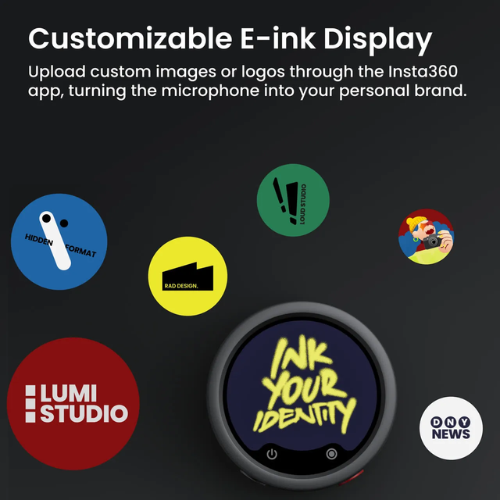

Customizable E-Ink Display
Upload custom images, logos, or graphics directly through the Insta360 app, turning the microphone into your personal brand in a snap.
-
AI Noise Canceling
Powered by an industry-leading NPU chip with breakthrough AI performance. Enjoy crisp, natural, high‑fidelity audio with an advanced noise canceling algorithm.
-
Auto Gain Control

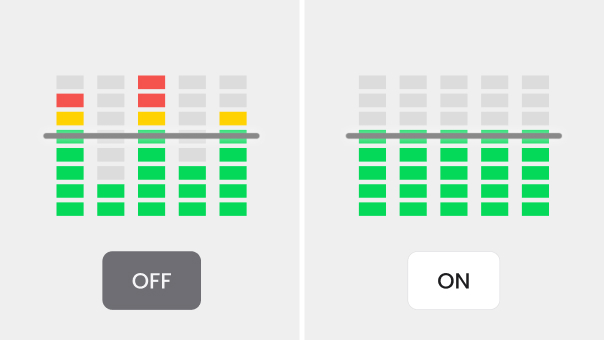

Automatically adjusts volume levels based on your voice intensity. No manual gain tweaking required, with two modes for different environments.
-

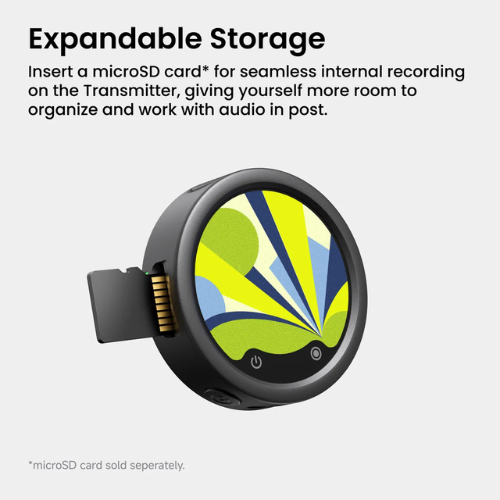

Expandable microSD Storage

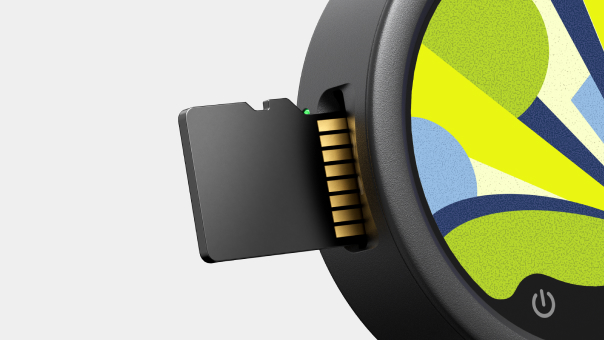

Expand storage to suit the shoot. Insert a microSD card* to turn on internal recording on the Transmitter and give yourself more room to organize and work with audio in post. *microSD card sold separately.
-
32-bit Float Internal Recording
The Transmitter has the capability to internally record audio using its onboard memory. 32-bit Float internal recording captures a wide dynamic range, reducing the risk of clipped audio.
-
Insta360 Direct Connect
No Receiver needed. The Transmitter connects over Bluetooth straight to Insta360 X6, X5, Luna Ultra, Luna Pro, Insta360 Ace Pro 2, and GO Ultra for high-fidelity 48kHz audio. Fewer devices, fewer steps, and a faster path from idea to shot.
-
4 TX + 1 RX Capability
One receiver connects up to four Transmitters and captures all four sources at once.Name each Transmitter on its display to tell speakers ap-art live and when editing.
-

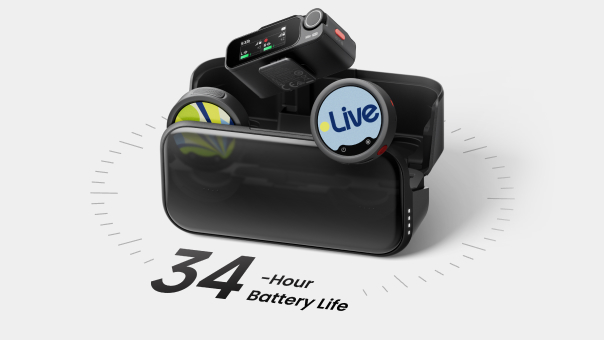

34-Hour Extended Battery
Even with so many advanced new features, enjoy up to 34 hours of battery life when using the Transmitter with the included Charging Case. *Measured in a lab environment.
Specs
-
General
-
Polar Pattern
Omnidirectional
-

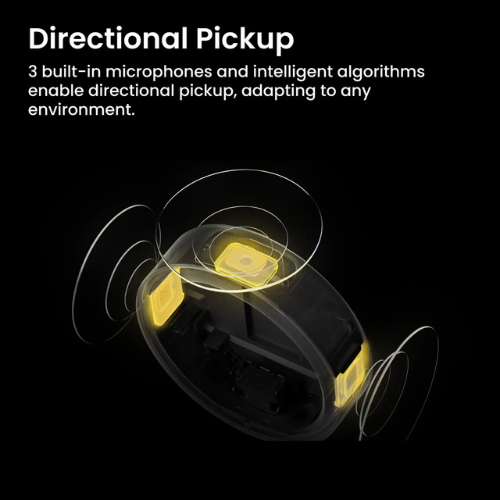

Selectable Pickup Modes
Omnidirectional/Super-directional/Cardioid/Figure-8
-
Frequency Response
Low Cut Off: 20Hz-20kHz
Low Cut On: 100Hz-20kHz
-
Microphone Sensitivity
Microphone Capsule: -38±1 dBV@1kHz, 94dB SPL
-
Signal-to-Noise Ratio (SNR)
72dB (A-weighted)
-
Maximum Sound Pressure Level (SPL)
130 dB SPL@10% THD
-
Sampling Frequency
48kHz
-
Bit Depth
32-bit float/24-bit
*32-bit float only applies to Transmitter's internal recordings.
-
Maximum Input Level (3.5 mm)
-8dBV
-
Equivalent Noise
22dB (A-weighted)
-
Monitor Interface Output Power
Max Output Power: 20 mW@1 kHz，32 Ω
-
Max Transmission Range
400m
*400 meters is measured when the Transmitter is connected to the Receiver in an open, unobstructed, and interference-free environment. When the Transmitter is connected to Insta360 X5 via Bluetooth in an open, unobstructed, and interference-free environment, the transmission range is about 100 meters, which may be affected by device orientation, camera shooting modes, and other factors.
-
-
Transmitter
-
Dimensions
38 × 12.2mm (Diameter×Height)
-
Weight
19.7g (Without Clip)
-
Display
6-Color E-Ink Screen
Size: 1.22''
Resolution: 240 × 208
PPI: 197 (Pixels Per Inch)
-
Wireless Mode
GFSK 1Mbps and 2Mbps
-
Equivalent Isotropic Radiated Power (EIRP)
2.400-2.4835GHz: ≤ 20dBm (FCC/CE/SRRC/MIC)
-
Wireless Mode Operating Frequency
2.400-2.4835GHz
-
Bluetooth Protocol
Bluetooth V5.4
-
Bluetooth Operating Frequency
2.400-2.4835GHz
-
Bluetooth Transmitter Power (EIRP)
BLE: ≤ 20 dBm
BR/EDR: ≤ 20 dBm
-
Battery Type
Li-ion
-
Battery Capacity
240mAh
-
Battery Energy
0.94Wh
-
Battery Voltage
3.89V
-
Charging Specification
Max 5V
-
Charging Temperature
0℃ to 45℃
-
Operating Temperature
-10℃ to 45℃
-
Charging Time
Fully charged in approximately 1 hour, 80% in about 24 minutes.
*Tested in a lab environment with a 5V/3A charger.
-
5-Minute Fast Charge
A 5-minute charge gives 1.5 hours of use.
*Tested in a lab environment with the Transmitter’s battery below 50%, charged with a 5V/3A charger. Noise cancellation and internal recording on Transmitter are off. Close-range recording in an interference-free environment, with the Transmitter connected to the Receiver and the Receiver connected to a camera via a 3.5mm camera audio cable.
-

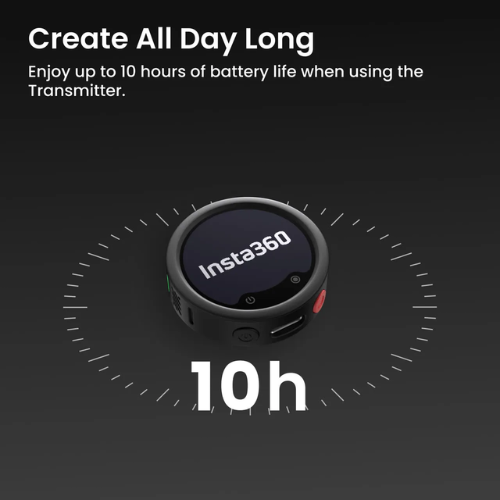

Operating Time
10 hours
*Measured using Insta360 Mic Pro (2 TX + 1 RX), with noise cancellation and internal recording off under interference-free conditions, with both Transmitters connected to the Receiver and Receiver connected to a camera via the 3.5mm camera audio cable.
-
Onboard Memory
32 GB
-
Internal Recording Available Duration
24-bit (Mono Internal Recording): 60 hours
24-bit (Stereo Internal Recording): 29.7 hours
32-bit (Mono Internal Recording): 44.8 hours
32-bit (Stereo Internal Recording): 22.2 hours
-
-
Receiver
-
Dimensions
55.8×27.7×21mm (2.2×1.1×0.8in) (L×W×H)
-
Weight
29.8g (1.1oz)
-
Wireless Mode
GFSK 1Mbps and 2Mbps
-
Equivalent Isotropic Radiated Power (EIRP)
2.400GHz-2.4835GHz: ≤ 20dBm (FCC/CE/SRRC/MIC)
-
Operating Frequency
2.400GHz-2.4835GHz
-
Bluetooth Protocol
Bluetooth V5.4
-
Bluetooth Operating Frequency
2.400GHz-2.4835GHz
-
Bluetooth Transmitter Power (EIRP)
BLE: ≤ 20 dBm
-
Battery Type
Li-ion
-
Battery Capacity
410mAh
-
Battery Energy
1.60Wh
-
Battery Voltage
3.89V
-
Charging Specification
Max 5V
-
Charging Temperature
0℃ to 45℃
-
Operating Temperature
-10℃ to 45℃
-
Charging Time
Fully charged in approximately 75 minutes, 80% in about 27 minutes.
*Tested in a lab environment with a 5V/3A charger.
-
5-Minute Fast Charge
A 5-minute charge gives 1.5 hours of use.
*Tested in a lab environment with the Receiver’s battery below 50%, charged with a 5V/3A charger. Noise cancellation and internal recording on Transmitter are off. Close-range recording in an interference-free environment, with the Transmitter connected to the Receiver and the Receiver connected to a camera via a 3.5mm camera audio cable.
-
Operating Time
11 hours
*Measured using Insta360 Mic Pro (2 TX + 1 RX), with noise cancellation and internal recording off under interference-free conditions, with both Transmitters connected to the Receiver and Receiver connected to a camera via the 3.5mm camera audio cable.
-
-

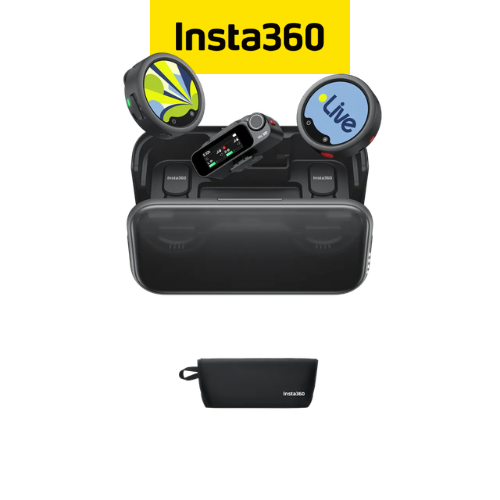

Charging Case
-
Dimensions
122.00×61.90×42.20 mm (L×W×H)
-
Weight
174g (Charging Case only, without included accessories)
-
Battery Type
Li-ion
-
Battery Capacity
2815mAh
-
Battery Energy
10.951Wh
-
Battery Voltage
3.89V
-
Charging Specification
Max 5 V
-
Charging Temperature
0℃ to 45℃
-
Operating Temperature
-10℃ to 45℃
-
Operating Time with Charging Case
30 hours
*Measured using Insta360 Mic Pro (2 TX + 1 RX), with the Charging Case fully charged, noise cancellation and internal recording on the Transmitters are off. Close‑range recording in an interference‑free environment, with both Transmitters connected to the Receiver and the Receiver connected to a camera via a 3.5mm camera audio cable.
-
Charging Time
Approx. 2 hours
-
Charging Cycles for TX and RX
When charging two Transmitters and one Receiver simultaneously, a fully charged charging case can fully charge them for approx. 2 times.
-
