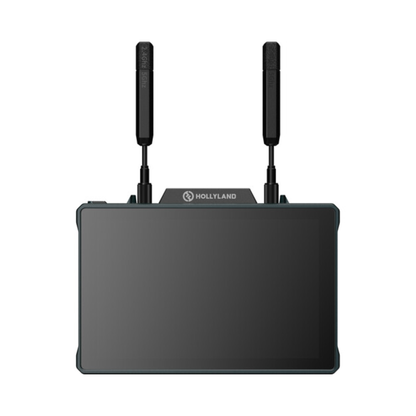

Pyro 7

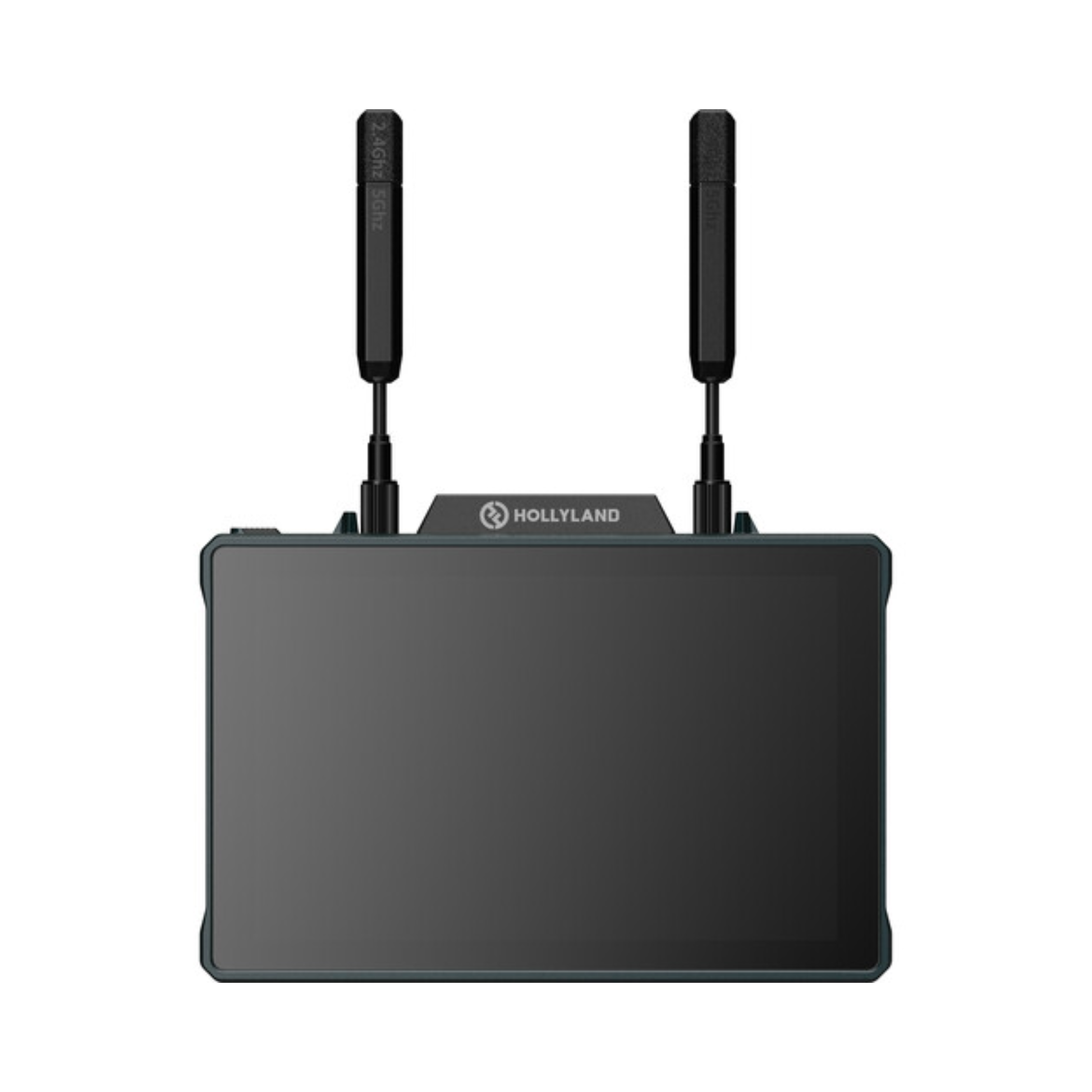

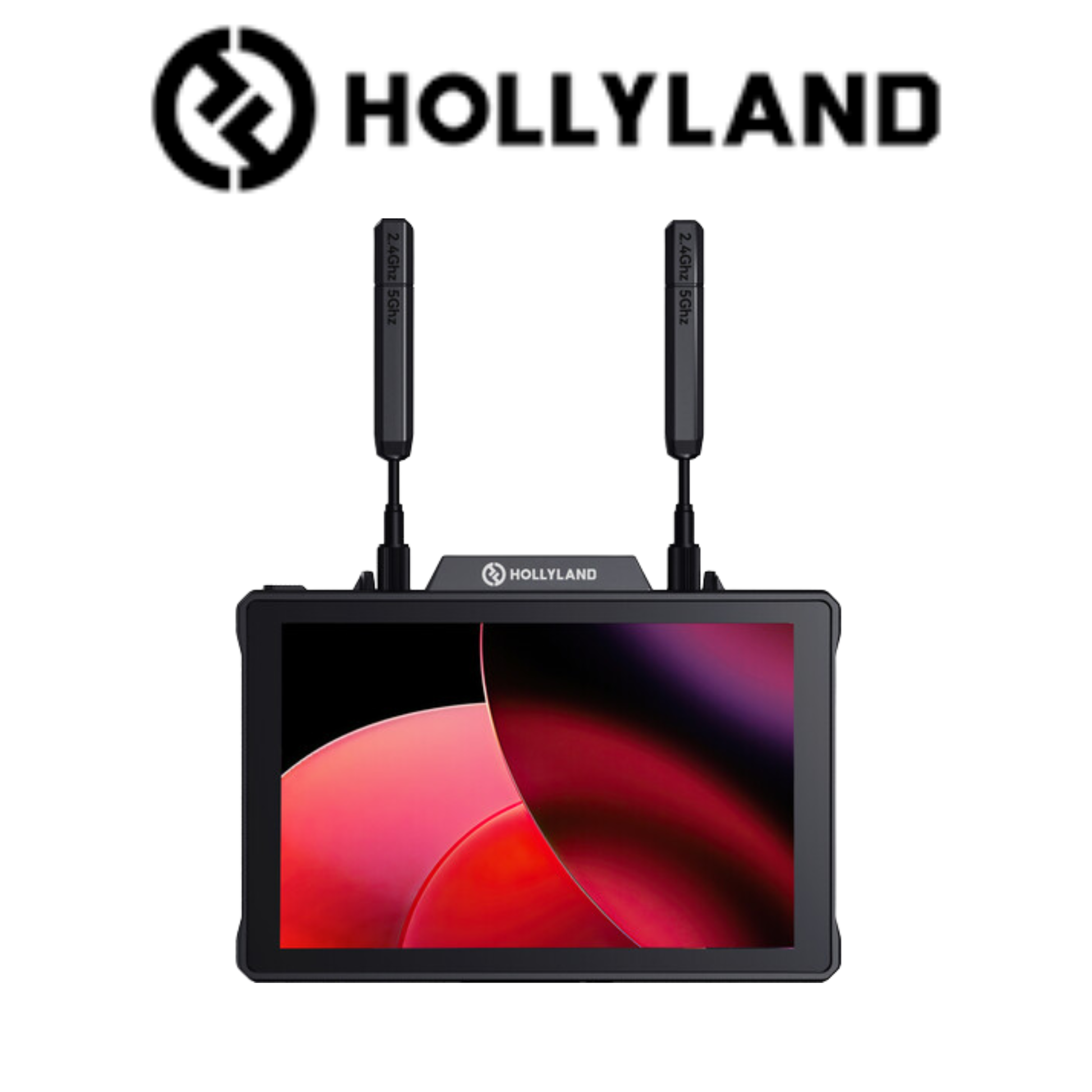

Pyro 7 is a 7-inch wireless monitor that integrates the functionalities of TX, RX, and monitor, all in one. It utilizes Auto Dual-Band Hopping (ADH) technology. With 1,300ft (400m) and an incredibly low latency of only 60ms, Pyro 7 supports 2.4GHz/5GHz dual-band transmission and automatic frequency hopping. Its exceptional hardware design enables Pyro 7 to simultaneously connect one transmitter to four receivers, and the convenience of dual-camera monitoring is achieved through customizable shortcut keys. Additionally, the upgraded HollyOS system provides enhanced image analysis capabilities and allows for video file export via an external SD card. Pyro 7 is compatible with Pyro H and Pyro S, which means you can easily pair Pyro 7 with either Pyro H or Pyro S. This provides you with greater flexibility and scalability to meet various monitoring needs.

Pyro 7 At A Glance

Key Features

1TX & 4RX

Offers more flexibility when additional monitoring needs emerge on set.

1300ft (400m) & 0.06s Latency

Ultra-long range wireless transmission capability.

2.4 GHz & 5 GHz Dual Band

Provides better signal transmission performance and efficiency.

Auto Frequency Hopping

Guarantees reliable and uninterrupted wireless video transmission.

TX, RX, and Monitor – All in One

One device to meet your diverse needs

Dual-View Quick Monitoring Switch

Conveniently switch to the desired view.

7-Inch & 1500 nits

7-inch, better monitoring experience. 1500 nits, clear and visible even in outdoor or strong lighting conditions.

Precise Image Analysis

More precise and advanced image analysis features for you.

SDI & HDMI Loopout

Satisfies the diverse requirements of different user groups.

RTMP Streaming

Convenient for live streaming and video conferencing.

4 Receivers. Not an Issue.

WifiBroadcast Technology

More Flexible.
Meet More Monitoring Needs.

Pyro 7’s WifiBroadcast technology enables one transmitter to connect to four receivers with stable signals, offering more flexibility when additional monitoring needs emerge on set.

Broadcast Mode

Activated

When Broadcast mode is activated, the transmitter can transmit signals to a max of four receivers.

Deactivated

When Broadcast mode is deactivated, the transmitter can transmit signals to at most two receivers and two mobile devices.
*Connection to the monitoring app may affect the transmission range.

See Real-time Footage

Quick Monitoring Switch

Pyro 7 enables seamless connection with Pyro series video transmission solution after grouping preset. You can swiftly switch between dual camera views for monitoring within 1 second by utilizing two customizable buttons.

*This feature is used in the case of Broadcast mode, pre-pairing, same video resolution, and same mode (Smooth or HD mode).

With self-developed 2.4 GHz & 5 GHz Dual-Band technology, Pyro 7 features a stable transmission range of up to 1,300ft (400m). It achieves a minimal transmission latency of 60ms thanks to upgraded chips and optimized video encoding/decoding algorithms.

Dual Boosts.
Less Latency and More Stability.

Compared to traditional video transmission systems whose range extends at the cost of image quality and latency, Pyro S excels with increased transmission distance while preserving video quality and minimizing latency.

With our developed Auto Dual-Band Hopping (ADH) technology, Pyro 7 operates on both 2.4 GHz and 5 GHz dual-bands and features intelligent Auto Frequency Hopping, so it can automatically choose the clearest channel. This feature guarantees reliable and uninterrupted wireless video transmission.

Pyro 7 offers a dual-band transmission solution that addresses common issues such as signal interference, low transmission efficiency, and frequency congestion. And the omnidirectional high-gain antennas will also ensure stable signals in all directions. This provides better signal transmission performance and efficiency. With Pyro 7, you won’t have to worry about video drop issues any more.

Pyro 7 is equipped with Auto Frequency Hopping technology, which constantly scans and monitors the strength of the signal and interference across various frequency ranges to find the best wireless channel to use, resulting in a more reliable connection.

What’s New? Have a look.

Leap Forward – HollyOS Image Analysis

Precise Image Analysis, Enhanced Your Experience

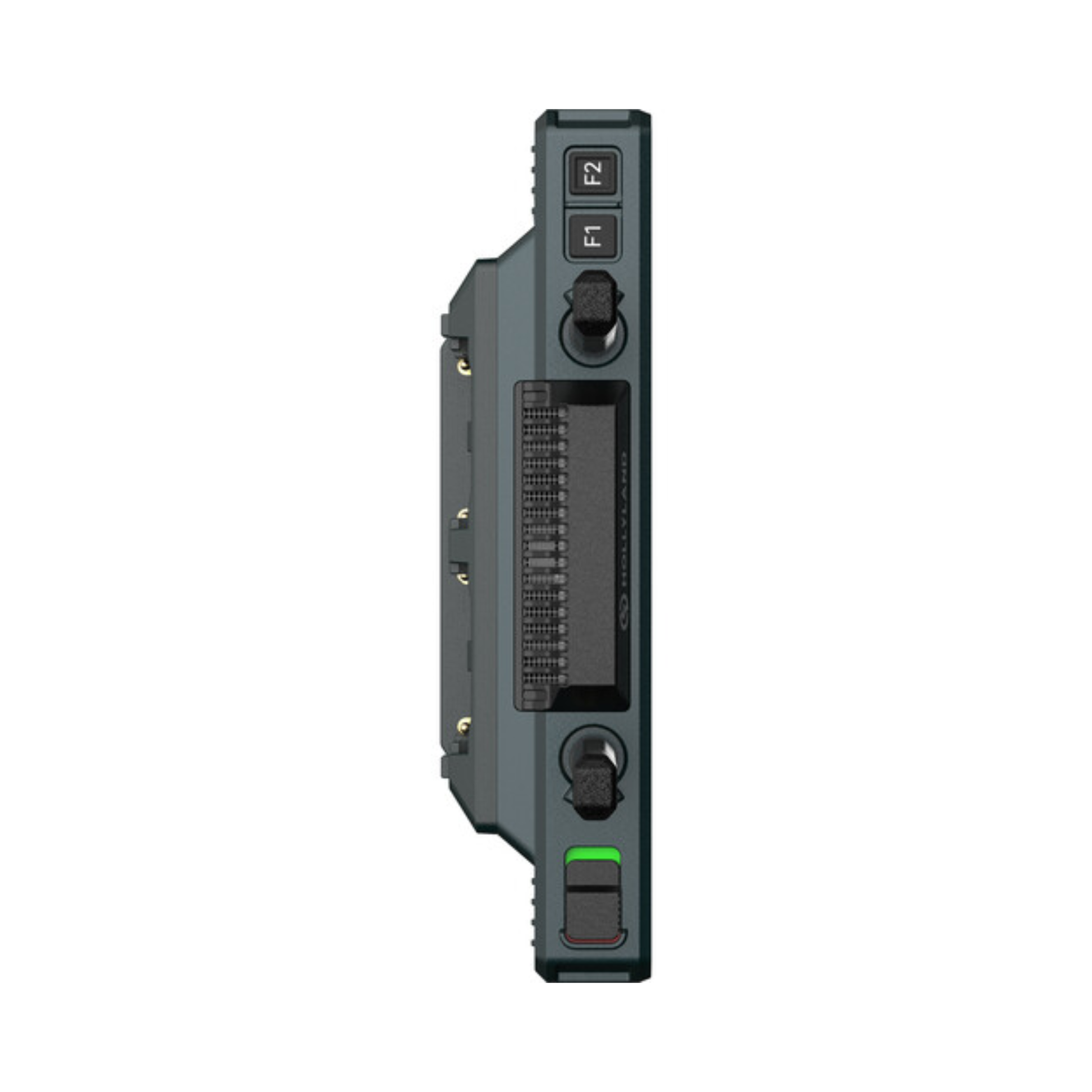

Pyro 7 offers a convenient custom shortcut key feature that can be used for dual-view monitoring and can also be used to quickly launch Waveform, Recording, Focus Assist and other image analysis functions.

•
  Pyro 7
  7″ Wireless Transceiving Monitor

•
  Pyro 7 Kit
  Dual 7″ Wireless Transceiving Monitor

Specifications

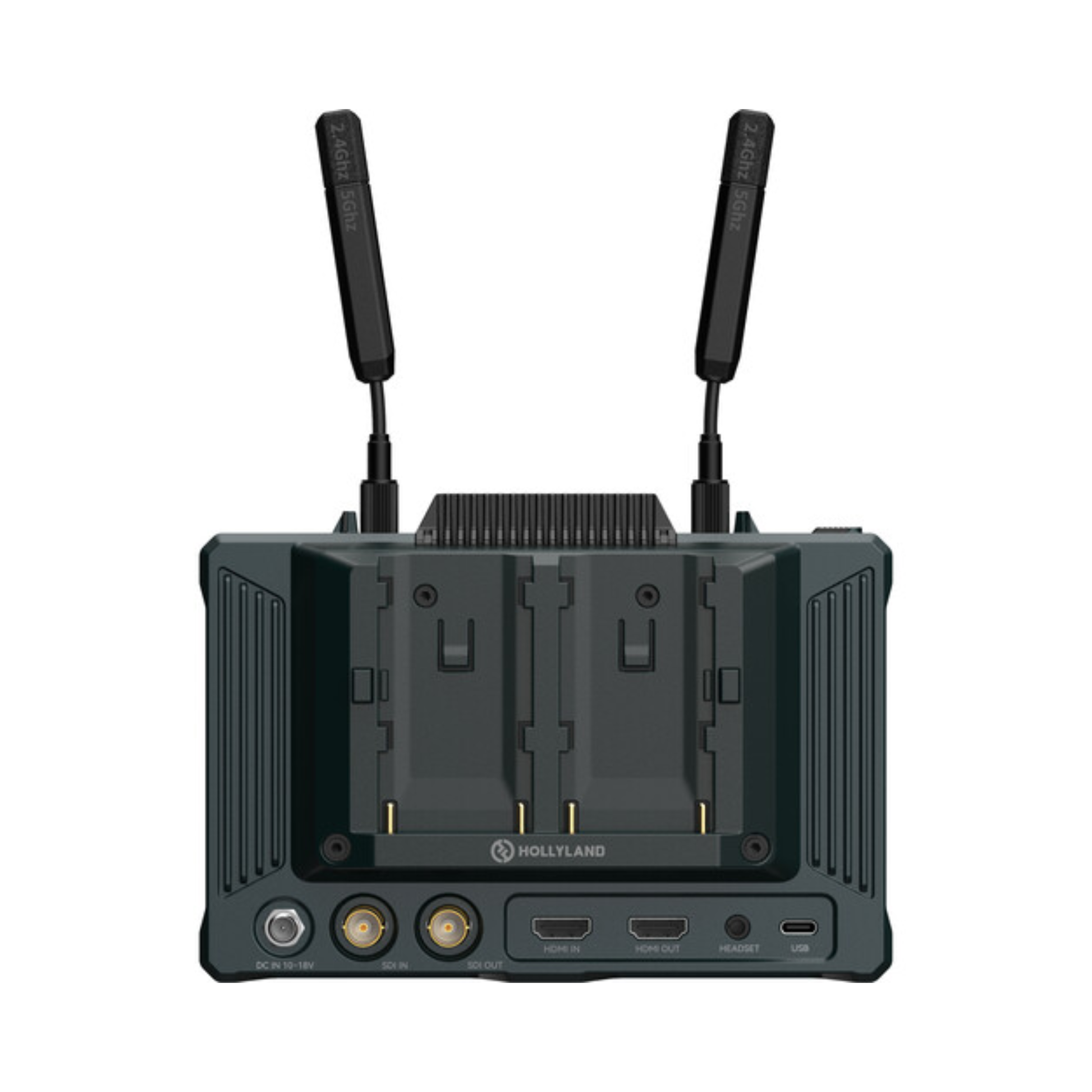

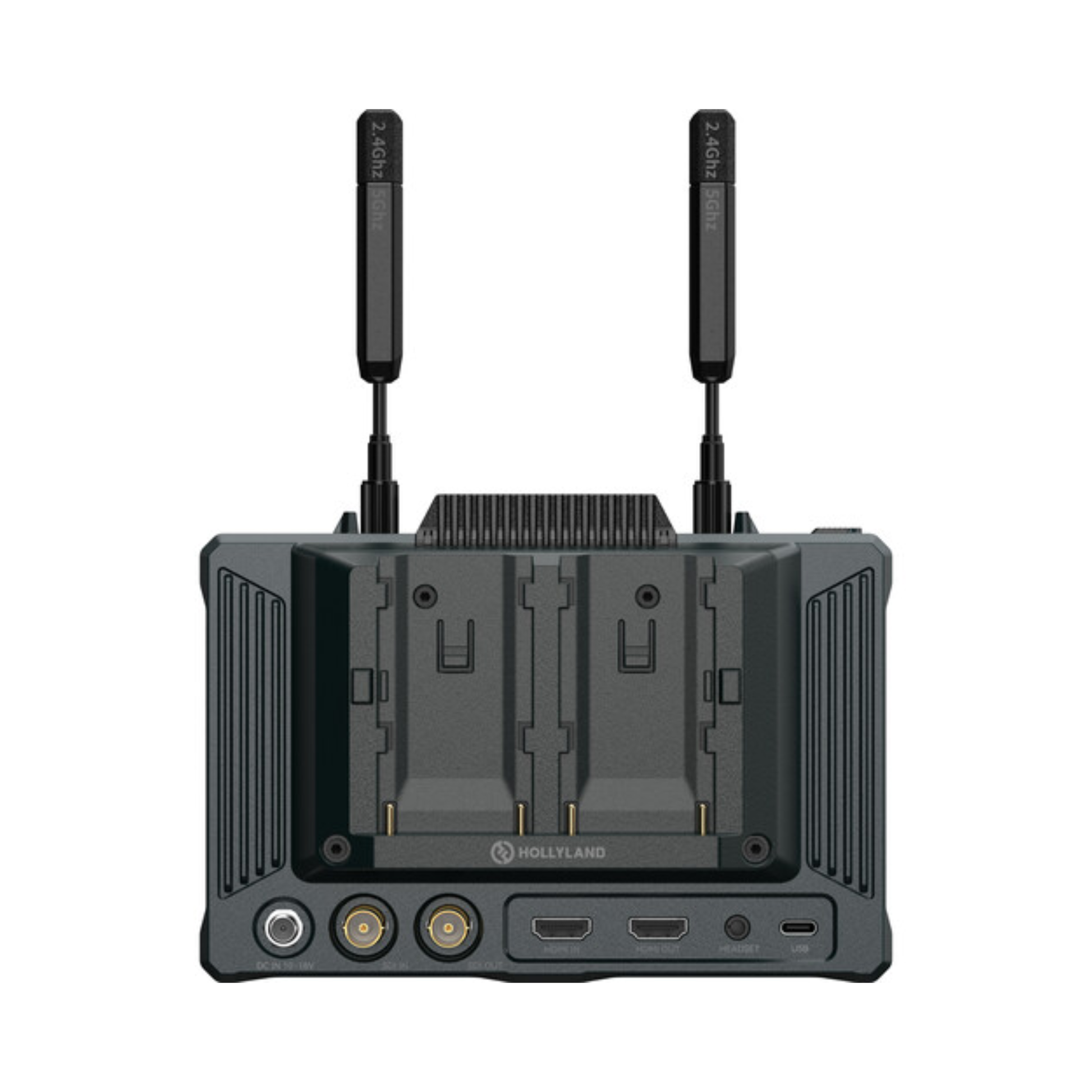

Input Port

HDMI 1.4b + 3G SDI

Output Port

HDMI 1.4b + 3G SDI

RP-SMA Male*2

DC Input (2.0mm core socket)

3.5mm

USB-C (USB 2.0 OTG)
SD Card Slot

7″ Touchscreen

1920 × 1200 pixels

323 PPI

16:9

1500 nits

1000:1

10 – 18V/2.5A DC Input (nominal 12V)

< 22W

≈ 570g (20.1oz)
with battery plate included and external antennas excluded

180 × 127 × 31.8mm (7.1″ × 5″ × 1.25″)
with battery plate and external antennas excluded

5.1 – 5.8 GHz; 2.412 – 2.484 GHz

≤ 23 dBm

-80 dBm

< 50ms

≈ 60ms (test data when 1080p60 signals are transmitted in a laboratory)

•1,300ft (400m)* (Connection to the monitoring app may affect the range);
•650ft (200m)* (in Broadcast mode)

20 MHz; 40 MHz (in Broadcast mode)

HDMI 1.4b 8-Channel

– 10℃ – 45℃

– 40℃ – 60℃



720p50/59.94/60
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p50/59.94/60
3840*2160 23.98/24/25/29.97/30
720p50/60
1080i50/60
1080p24/25/30
1080p 50/60
1920*1080 24/25/30
720p50/60
1080i50/60
1080p24/25/30
1080p 50/60
1920*1080 24/25/30



1080p50/59.94/60 (Level A)
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p23.98/24
1080i50/59.94/60
720p50/59.94/60
1080p50/59.94/60 (Level A)
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p23.98/24
1080i50/59.94/60
720p50/59.94/60
